Galena
Working form guided by an undated historical illustration, 1857–1872
An interpretive 3D reconstruction of the vessel afloat, in the form named above and from before its loss in Thunder Bay. It is informed by the historical record set out under History below, where the documented evidence and the interpretation are kept apart; rigging, colours and fittings are partly inferred. It is not a survey of the wreck.
This ship ran aground along this shore. Nobody knows the exact spot, so the marker shows the general area.
Starboard bow · complete vessel · drag to rotate, scroll or pinch to zoom, right-drag to pan. Hiding a part shows what sat beneath it; it does not recreate the wreck.
What the model represents
From the model specification. Two lists, kept apart on purpose.
Documented
- Propeller steamer built by Luther Moses at Cleveland in 1857. NOAA Galena record
- NOAA wreck dimensions 190×30 ft. NOAA Galena record
Inferred
- Underwater hull lines and draft
- Exact colors, fittings, hatch layout and rigging routes
Configuration caveat. NOAA gives 190 × 30 ft. An undated archive illustration guides the large support arch, one forward mast, aft funnel and small forward pilothouse. It is a stylized historical image, not a measured plan. The far-side arch, exact cabin layout, hull lines, paint and dimensions of fittings are inferred. North Point wreck attribution and location remain approximate.
Two numbers that are not the same thing. The waterline toggle sits at 3.10 m above the keel, a display assumption, not a measured draft. The wreck lies in about 11 ft of water; that describes the site, not the ship.

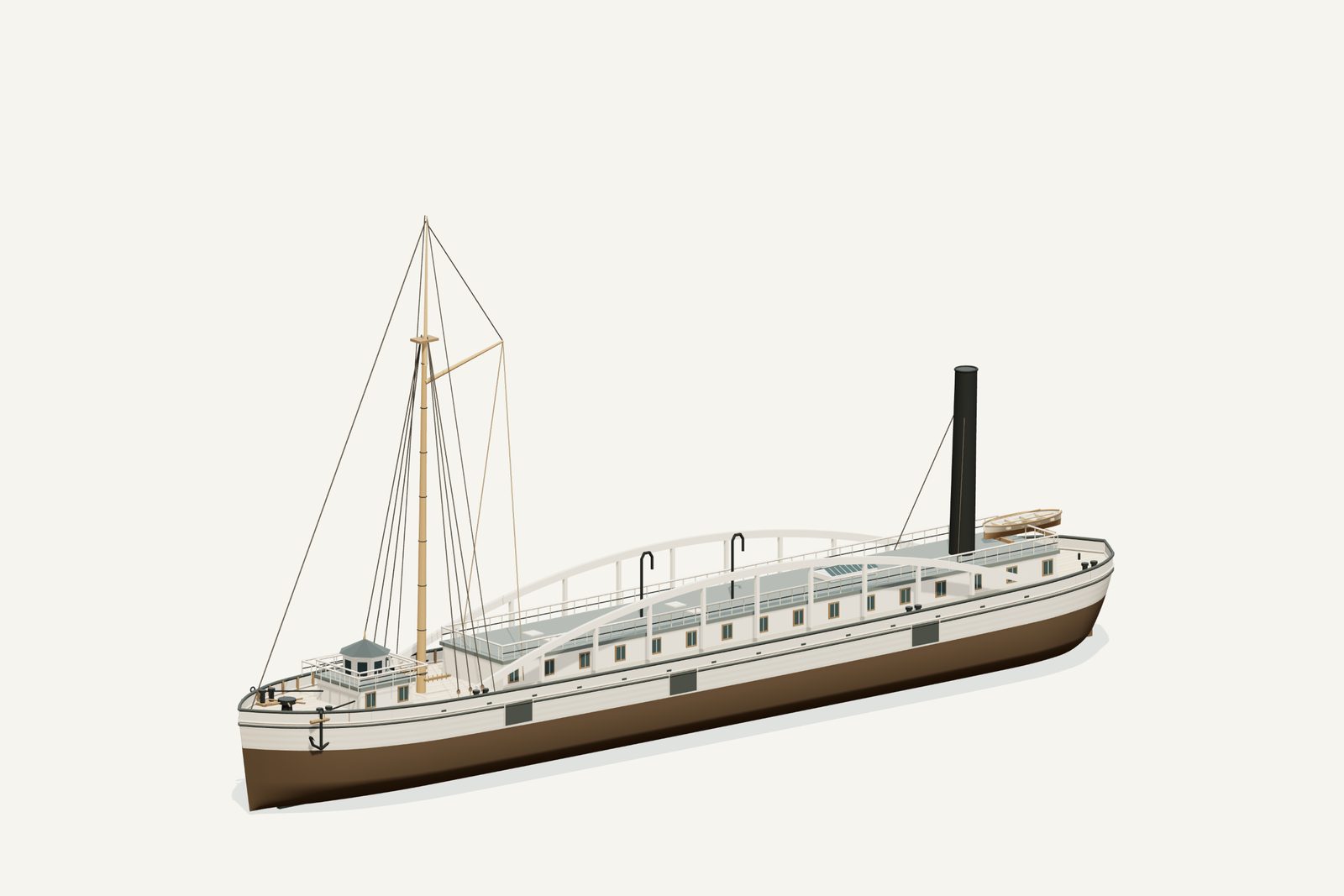

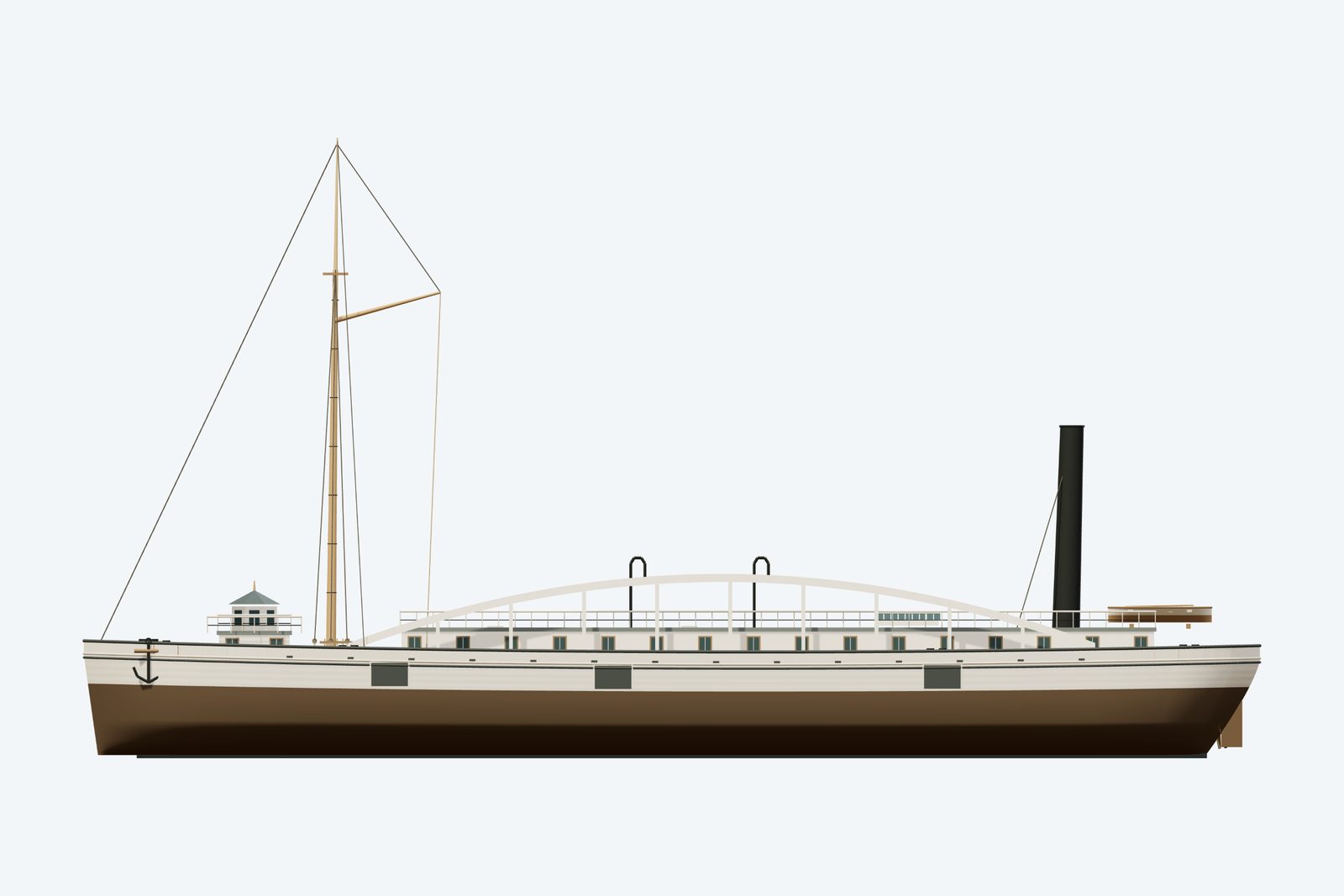

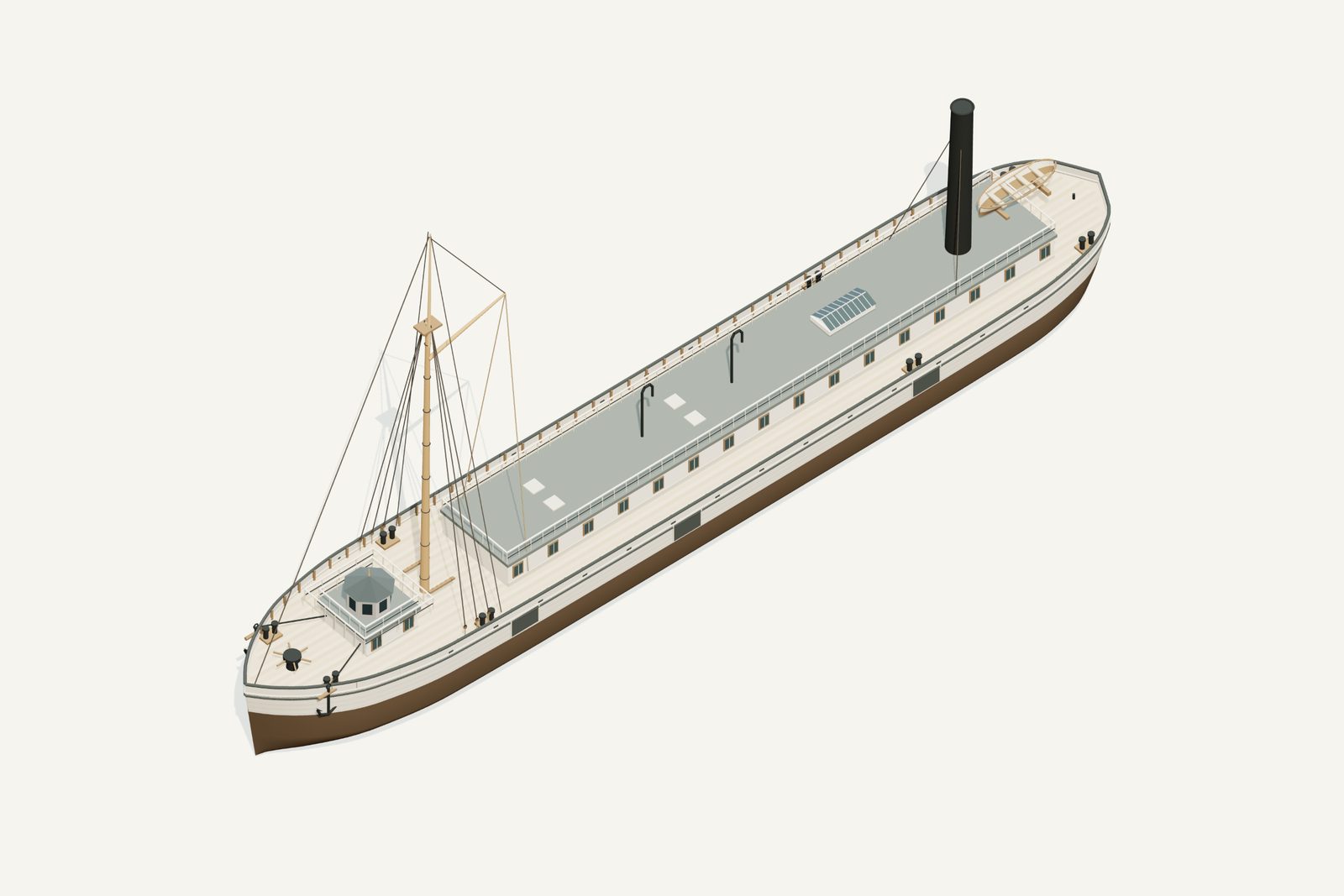

Renders from the model
History, evidence and limits
The research notes behind the reconstruction, reproduced with their citations.
Version 1.1. Metadata and presentation revised September 8, 2026; original evidence review retained.
Selected appearance
Working form guided by an undated historical illustration, 1857–1872. NOAA gives 190 × 30 ft. An undated archive illustration guides the large support arch, one forward mast, aft funnel and small forward pilothouse. It is a stylized historical image, not a measured plan. The far-side arch, exact cabin layout, hull lines, paint and dimensions of fittings are inferred. North Point wreck attribution and location remain approximate.
Documented evidence
Propeller steamer built by Luther Moses at Cleveland in 1857. NOAA Galena record
NOAA wreck dimensions 190×30 ft. NOAA Galena record
Reasonable interpretation
Underwater hull lines and draft
Exact colors, fittings, hatch layout and rigging routes
Evidence assessment: build. NOAA's scale and propulsion classification, together with a ship-specific historical illustration, support a defensible overall silhouette. This model depicts the illustration-informed working form within 1857–1872; the undated image cannot establish every career refit or an exact loss-day appearance.
Documented baseline. NOAA identifies Galena as a propeller steamer, built in 1857 by Luther Moses at Cleveland, with 190 ft wreck length and 30 ft beam. These set a 57.912 × 9.144 m model hull. The record dates the North Point Reef loss to September 24, 1872 while carrying lumber and describes scattered wreck material intermingled with other vessels. NOAA Galena record.
Inspected historical image. Wikimedia's file Galena ship.png reproduces an illustration and cites Great Lakes Maritime Collection record 2895529—the same archive record linked by NOAA's Galena page. The image visibly carries the Galena name. It shows a prominent longitudinal arch, one forward working mast with raised gaff, an aft smokestack, a low central cabin, side cargo openings, two tall bent pipes and a small forward pilothouse. These guide the model's distinguishing silhouette. The image looks drawn/engraved; it is not treated as a photograph, measured plan or geometrically precise survey. Its original date and creator were not independently established. Historical illustration and source link, original archive record.
Reasonable inferences. A matching far-side support arch is inferred from the visible longitudinal structure and bilateral hull construction. Arch thickness, curvature, posts, exact stations and joinery are newly authored approximations. The low deckhouse and faceted pilothouse follow the image's arrangement, while their widths, windows, roof geometry, fittings and stairs are not measured. The two tall inverted-U pipes reproduce the visible forms without asserting a recovered machinery function. One bare mast and raised gaff follow the visible rig; no exact original sail inventory is claimed or added.
The ship's boat, skylight, anchors, rigging paths, single screw, rudder, hull lines, underwater body and draft are interpreted. Monochrome artwork does not establish paint colors. Side cargo ports are dark exterior recesses, not openings into a restored interior. No military armor, guns or paddle wheels are added; this is not the unrelated USS Galena. The reported lumber cargo does not establish a specific deck pile, so none is invented.
setArches(boolean) controls support_arches, including their posts. Arches are shown by default. Hiding them exposes the deckhouse for inspection; it does not depict a documented refit, structural failure or plausible sailing condition. No display sails. Preserve the image-based interpretation and wreck-attribution qualifications alongside the model.
Unresolved uncertainties
No complete original lines plan is claimed. Exact loaded draft, concealed surfaces and fine fittings remain interpreted. The earlier research context below retains the source distinctions used for this reconstruction.
Uncertainties to retain. The secondary historical compilation gives 193 ft length, 12 ft hold depth and a different loss date and fatality account. It is flagged without replacing NOAA's scale or the existing catalogue record; hold depth remains unknown/null. Secondary Galena entry. NOAA's 16 ft wreck depth differs from the worksheet's 11 ft. Its coordinates also differ from the project's approximate marker; no marker was moved. Deck Y=4.55 m and waterline Y=3.1 m are chosen geometry references.
Sources
- NOAA Galena record
- Galena historical illustration
- Great Lakes Maritime Collection record 2895529
- Great Lakes Shipwreck Files: Galena 10148
Illustration conditions
Lake, shoreline, lighting and weather are artistic staging, not evidence of a specific historical voyage. AI artwork is supplemental; the GLB and direct renders establish the delivered geometry.
Sources used for the model
- NOAA Galena record — source
Dimensions, propulsion, builder, dates and archive identifier - Galena historical illustration — source
Inspected ship-specific image: arch, foremast, aft funnel, low cabin, forward pilothouse and bent pipes - Great Lakes Maritime Collection record 2895529 — source
Shared archive identifier linking the reproduced image to NOAA record; original page inaccessible - Great Lakes Shipwreck Files: Galena 10148 — source
Conflicting length, hold depth, date and fatality account; not adopted
Rights and respect
Removing or disturbing wreckage on Great Lakes bottomlands is a felony under Michigan Part 761, 1994 PA 451, at a fair market value of $100 or more. Positions are historical reference only — not navigation and not dive-planning data. Wreck records are published by the Michigan Underwater Preserve Council.
Treat these as graves. Lives were lost on many Great Lakes wrecks and human remains may still be present. Look, photograph, and leave everything exactly as you found it.
Model and renders were newly made for this project (2026). Three.js r160.1 is used under the MIT licence; its notice ships with the vendored files. Wreck position, depth and dates: Michigan Underwater Preserve Council. The model specification (version 1.1, revised 2026-09-08) is published beside the assets (model-spec.json).
